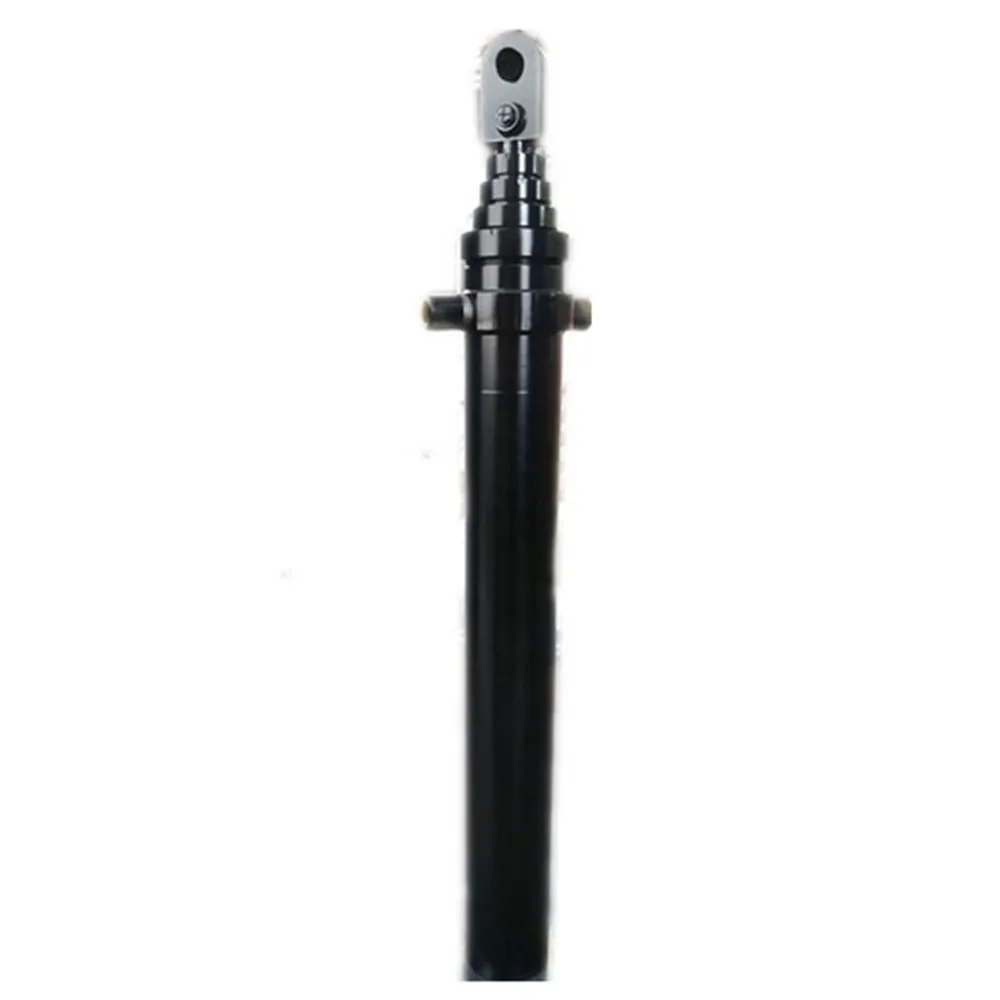

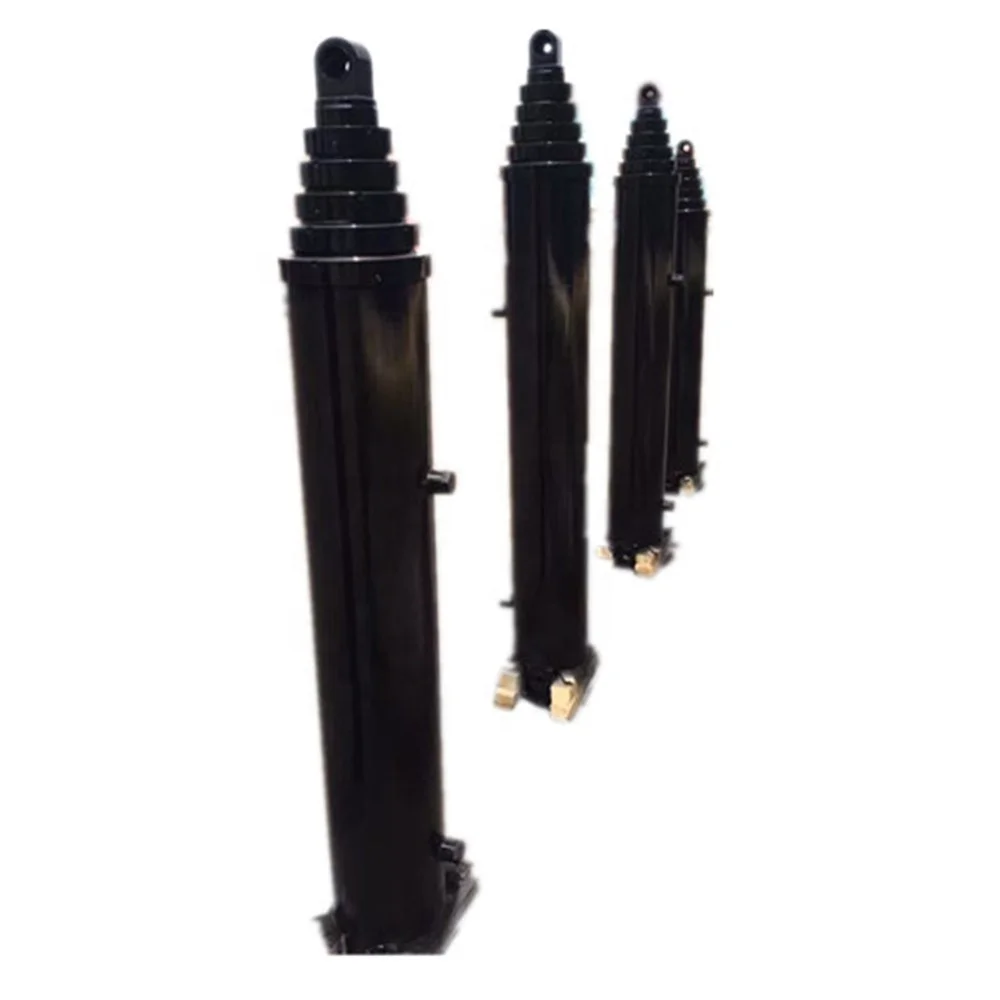

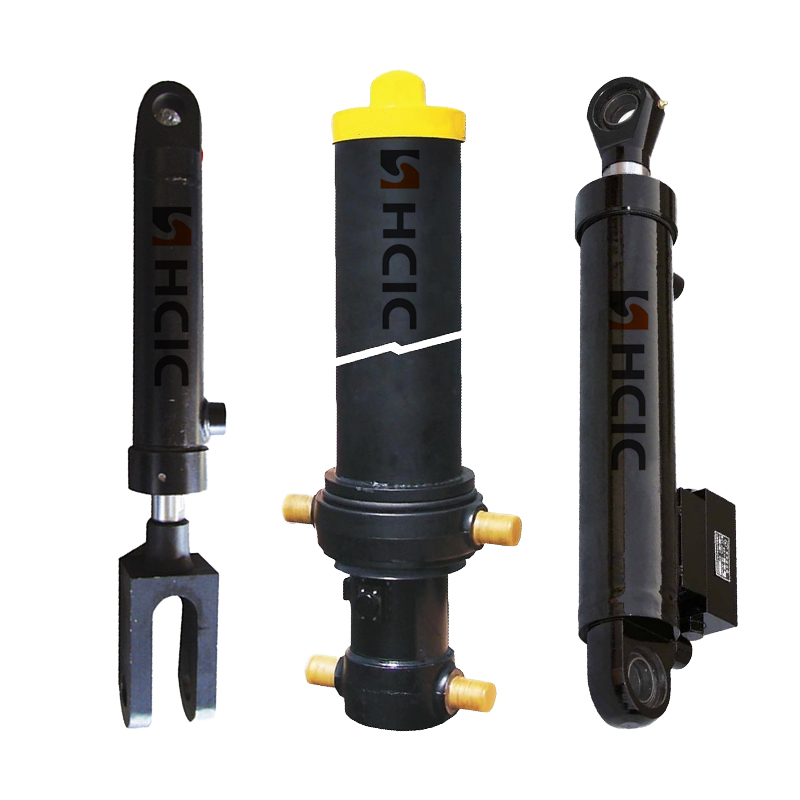

Cylinder Type Single Acting Telescopic Stroke 263.25 Closed 70.88 Rod Pin 2 Rod Width 2 Base Pin 2 LMSD 8 Stages 5 Stroke 263 Extended 715
Number of Stages 5
Largest Moving Stage Diameter 8 inches
Stroke Length (A) 263.63 in (6696 mm)
Closed Length (B) 70.88 in (1800 mm)
Extended Length (C) 334.5 in (8496 mm)
Rod Mount Width (D) 2 in (51 mm)
Rod Mount Pin Hole (E) 2.06 in (52 mm)
Base Mount Width (G) 9.5 in (241 mm)
Base Mount Pin Hole (J) 2.13 in (54 mm)
Port (L) 1" NPTF
Gallons of Oil (Retracted) 5.6
Gallons of Oil (Extended) 33.9
