Stroke166.75 Closed56.25 Rod Pin2 Rod Width2 Base Pin2 LMSD7 Stages4 Stroke166 Extended405

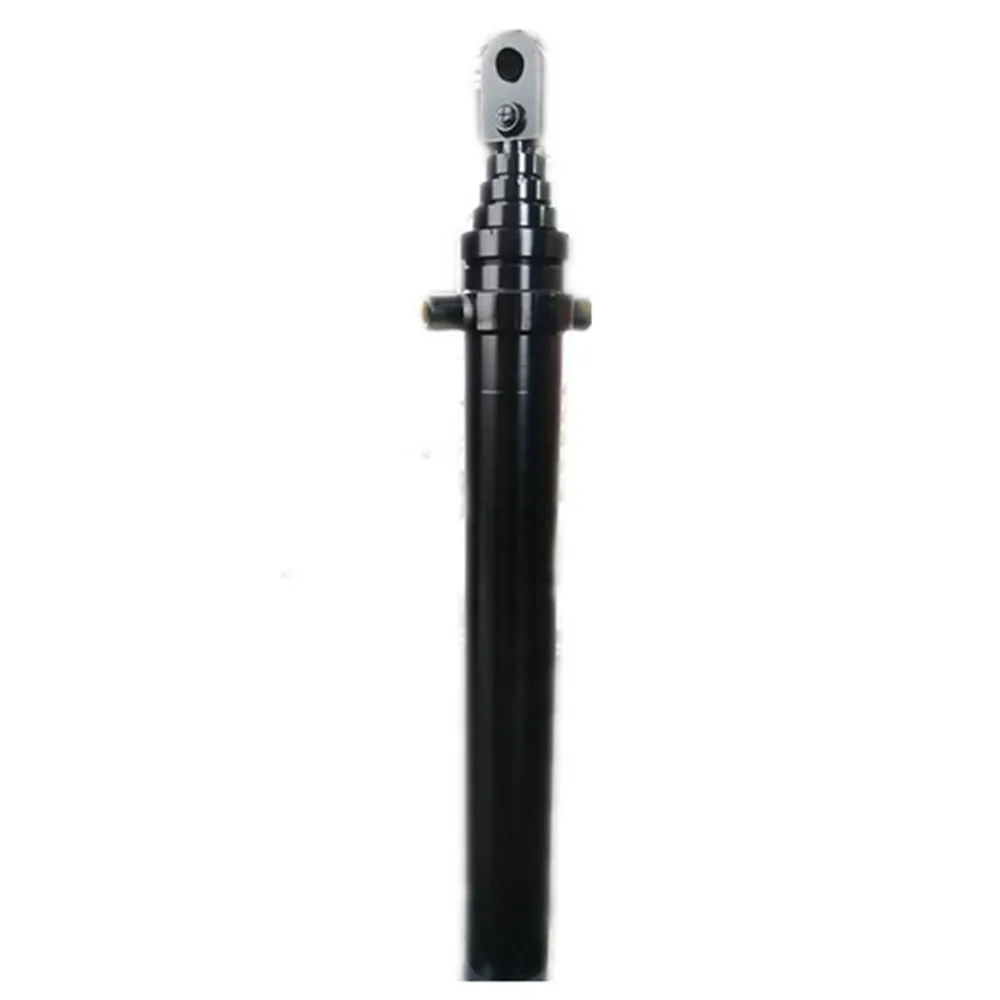

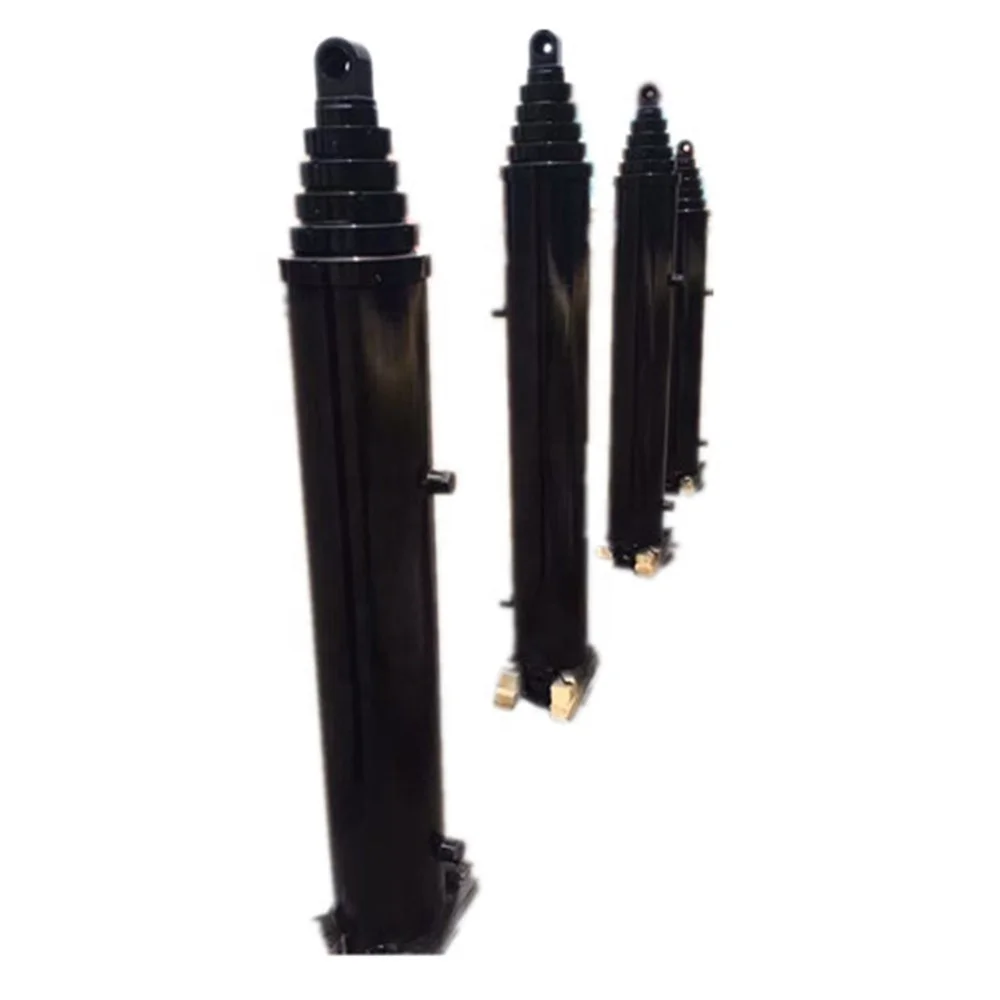

Number of Stages 4
Largest Moving Stage Diameter 7 inches
Stroke Length (A) 166.06 in (4218 mm)
Closed Length (B) 56.25 in (1429 mm)
Extended Length (C) 222.31 in (5647 mm)
Rod Mount Width (D) 2 in (51 mm)
Rod Mount Pin Hole (E) 2.06 in (52 mm)
Base Mount Width (G) 8.63 in (219 mm)
Base Mount Pin Hole (J) 2.13 in (54 mm)
Port (L) 1" NPTF
Gallons of Oil (Retracted) 3.7
Gallons of Oil (Extended) 17.5
