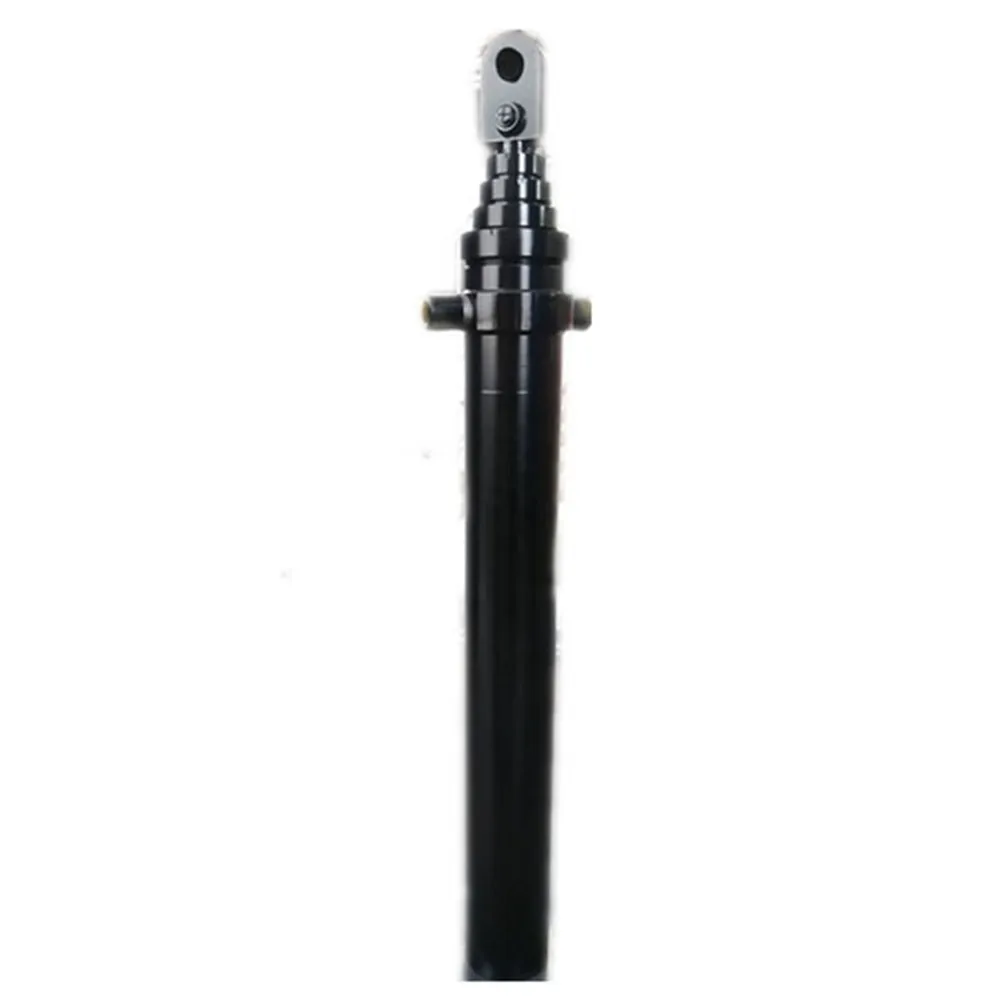

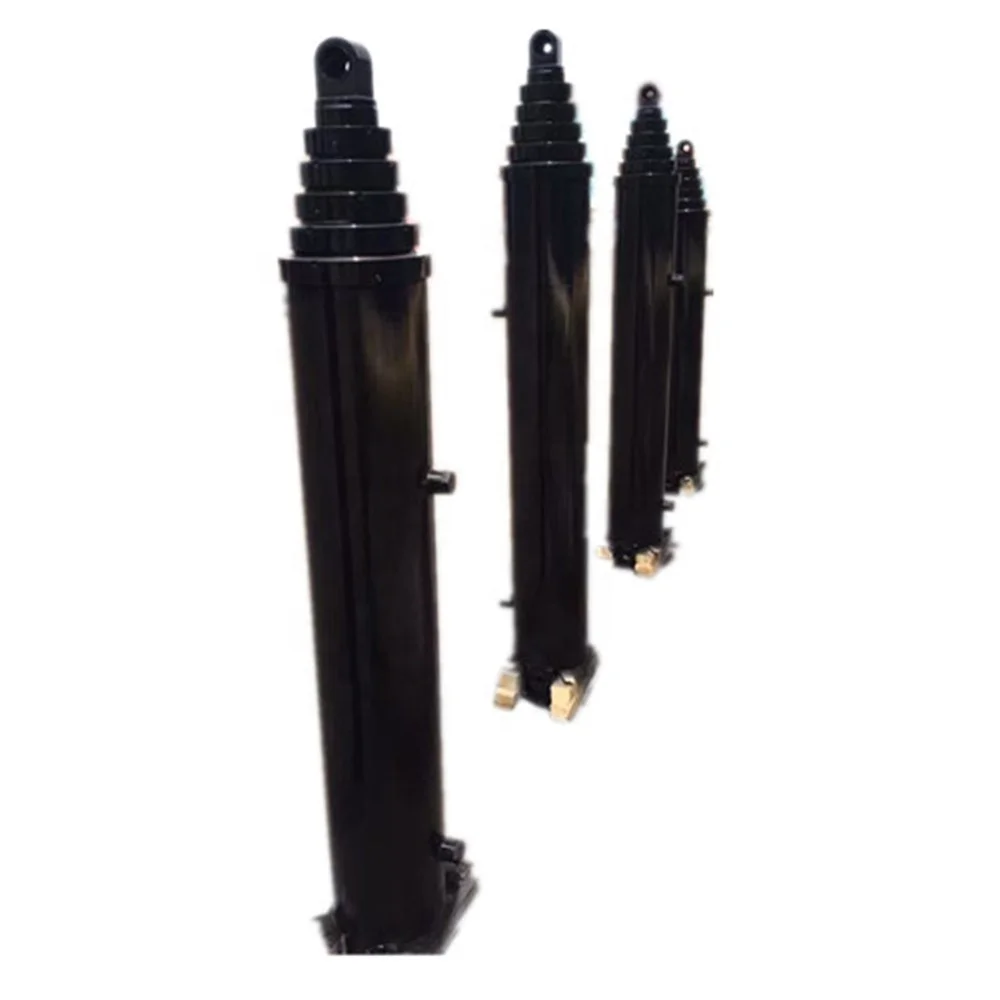

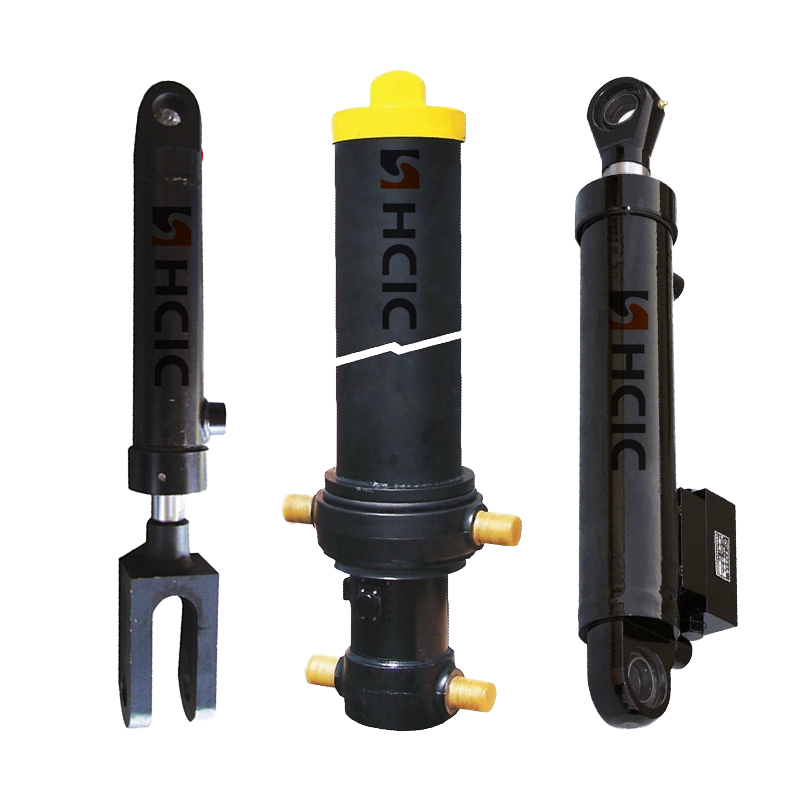

Cylinder Type Single Acting Telescopic Stroke 134.88 Closed 47.13 Rod Pin 1.5 Rod Width 2.69 Base Pin 1.75 LMSD 6 Stages 4 Stroke 134 Extended 275
Number of Stages 4
Largest Moving Stage Diameter 6 inches
Stroke Length (A) 134.75 in (3423 mm)
Closed Length (B) 47.13 in (1197 mm)
Extended Length (C) 181.88 in (4620 mm)
Rod Mount Width (D) 2.69 in (68 mm)
Rod Mount Pin Hole (E) 1.56 in (40 mm)
Base Mount Width (G) 8 in (203 mm)
Base Mount Pin Hole (J) 1.88 in (48 mm)
Port (L) 1" NPTF
Gallons of Oil (Retracted) 2.5
Gallons of Oil (Extended) 9.7
